Hello! Welcome to Shenzhen Honyuan precision equipment Co., Ltd. official website！

Your present location:index >> Product classification >> 2040 Tact switch >>1TS003E
  • product name: Top push SMD2*4*3.5mm
  • Product Number: 1TS003E
  • Material: LCP/BRASS/STAINLESS STEEL
  • Scope of application: Medical instruments, Driving recorders, Headphones, Smart speakers, Toys, Pad,Id card,


2*4*3.5mm small switch, with both longevity and stability, excellent material, for side pressing type products









Item Tact switch detail Tact switch detail2 Tact switch detail3
Article number 1TS003E 1TS003E 1TS003E
Model 1TS003E 1TS003E 1TS003E
Series 1TS003 1TS003 1TS003
(LxW) (mm) 2.0*4.0mm 2.0*4.0mm 2.0*4.0mm
(H) (mm) 3.5±0.1mm 3.5±0.1mm 3.5±0.1mm
Installation height (mm) 3.5±0.1mm 3.5±0.1mm 3.5±0.1mm
Operation Side-press type Side-press type Side-press type
Welding type SMD SMD SMD
Live-fire type Surface mount Surface mount Surface mount
Maximum rating DC 12V/50mA DC 12V/50mA DC 12V/50mA
Contact resistance (<mΩ) 500mΩ max. 500mΩ max. 500mΩ max.
Insulation resistance (MΩ at 100V DC) DC100V 60S  100MΩmin DC100V 60S  100MΩmin DC100V 60S  100MΩmin
Withstanding voltage AC250V(50~60HZ)60Smin AC250V(50~60HZ)60Smin AC250V(50~60HZ)60Smin
Response time <10ms  (ON, OFF) <10ms  (ON, OFF) <10ms (ON, OFF)
Operating force 160gf 180gf 250gf
Stroke Short stroke Short stroke Short stroke
Stroke (mm) 0.2±0.1mm 0.2±0.1mm 0.2±0.1mm
Operating life 100000 or more 50000 or more 15000 or more
Operating temperature –40℃～+90℃ –40℃～+90℃ –40℃～+90℃
Storage temperature –40℃～+90℃ –40℃～+90℃ –40℃～+90℃
Package style Reel packaging Reel packaging Reel packaging
Mini pakage 3000PCS/reel 3000PCS/reel 3000PCS/reel

CTNS/QTY 13reel/ctn 13reel/ctn 13reel/ctn

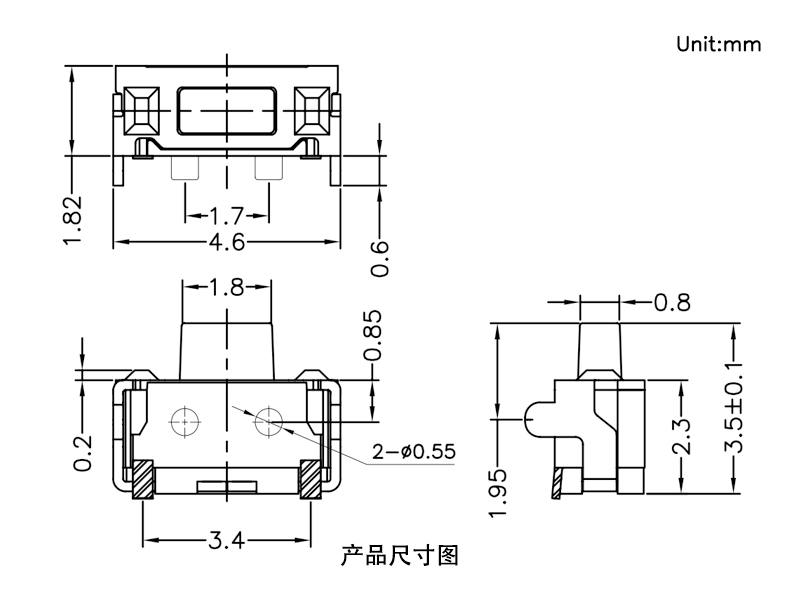

Dimensions:

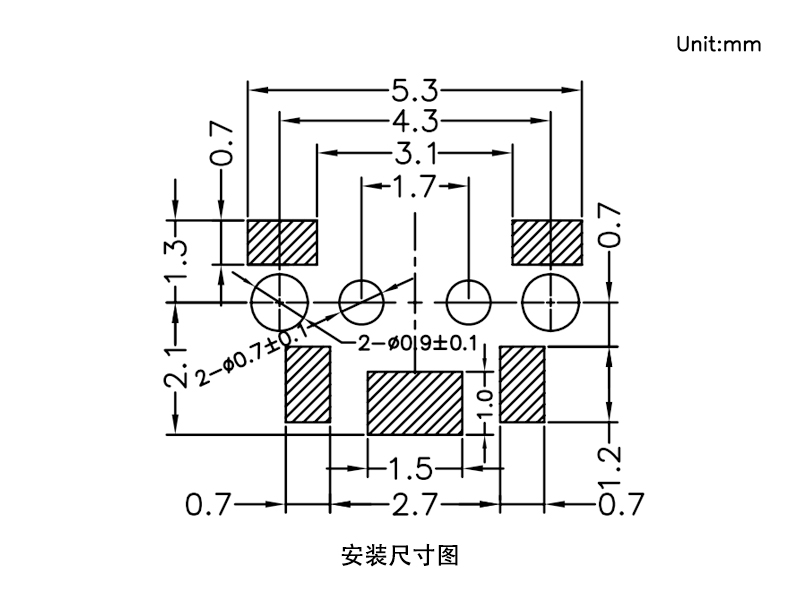

Welding diagram:



Circuit diagram:

Key words : Side switch,1TS003E
